Neumann TLM-102 Studio Set

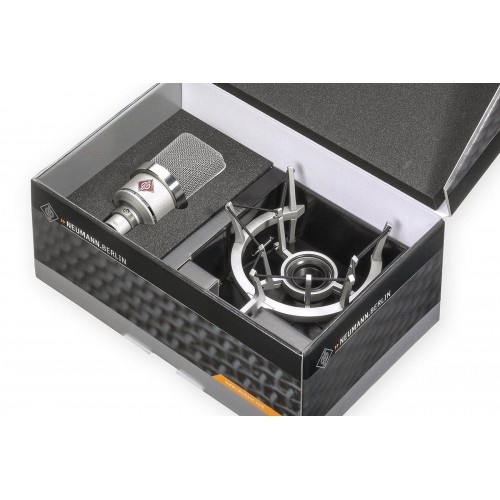

In the Box

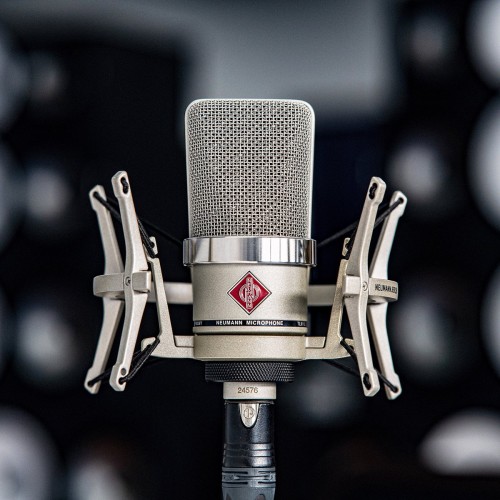

Neumann TLM-102 Large-Diaphragm Studio Condenser Microphone (Nickel)

Stand Mount Microphone Form Factor Stand/Boom Mount

• Sound Field Mono Operating Principle Pressure Gradient
• Capsule Condenser
• Polar Pattern Cardioid
• Orientation Side Address
• Circuitry Solid-State
• Pad None
• High-Pass Filter None
• Tone Adjustment None
• Indicators None
• On-Board Controls None
• Windscreen Built-In
• Performance Frequency Range 20 Hz to 20 kHz
• Maximum SPL 144 dB SPL (Phantom Power, .5% THD)
• Impedance 50 Ohms
• Load Impedance 1 Kilohms
• Sensitivity 11 mV/Pa at 1 kHz into 1 Kilohms
• Output Level 13 dBu
• Signal-to-Noise Ratio 73 dB CCIR 82 dB A-Weighted
• Equivalent Noise Level 21 dB CCIR 12 dB A-Weighted
• THD 0.5%
• Connectivity Output Connectors (Analog) 1 x XLR 3-Pin (on Mic)
• Power Operating Voltage 48 V ± 4 V (Phantom Power)
• Operating Current Consumption 3.5 mA Physical
• Color Nickel
• Dimensions ø: 2.05 x L: 4.57" / ø: 52 x L: 116 mm
• Weight 0.46 lb / 210 g
• Packaging Info
• Package Weight 2.14 lb
• Box Dimensions (LxWxH) 11.15 x 7.15 x 4.45"
