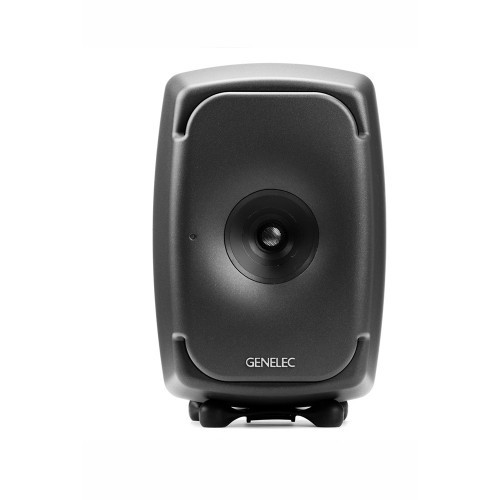

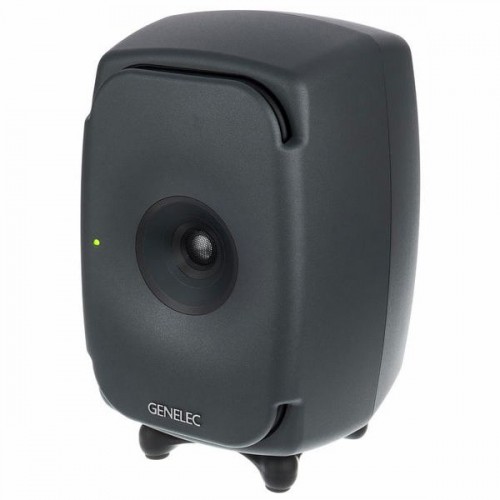

Genelec 8341A

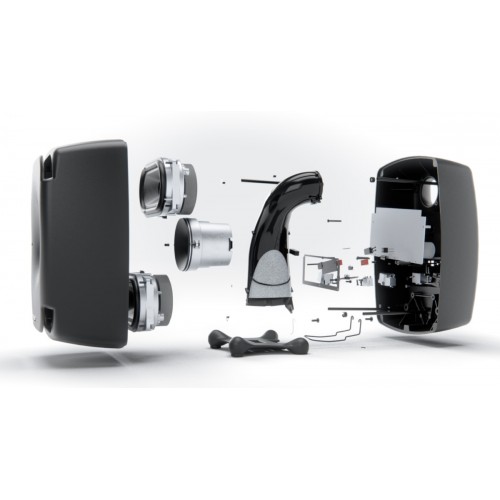

Genelec 8341's dual woofers employ Genelec's innovative Acoustically Concealed Woofers (ACW) to extend their coaxial acoustical radiation concept to bass frequencies. Hidden inside the monitor's cabinet, these woofers use the entire front baffle as a giant Directivity Control Waveguide (DCW) to control directivity over a very wide bandwidth, creating a massive "sweet spot." It also provides effective separation from the 8341's Minimum Diffraction Coaxial (MDC) driver, which reproduces midrange and high frequencies. The result is incredibly accurate monitoring with unparalleled frequency separation, a wide dispersion pattern, and unbelievable imaging.

Tech Specs

• Powered:Yes
• Power Configuration:Tri-amped
• Quantity:Single
• LF Driver Size:2 x (6.6" x 3.5") concealed woofers
• MF Driver Size:1 x 3.5"
• MF Driver Type:Diffraction Coaxial Driver
• HF Driver Size:1 x 0.75" Coaxial tweeter
• HF Driver Type:Diffraction Coaxial Driver
• LF Driver Power Amp:250W
• MF Driver Power Amp:150W
• HF Driver Power Amp:150W
• Total Power:550W
• Frequency Response:45Hz-20kHz (±1.5 dB)
• Maximum Peak SPL:110 dB SPL @ 1m

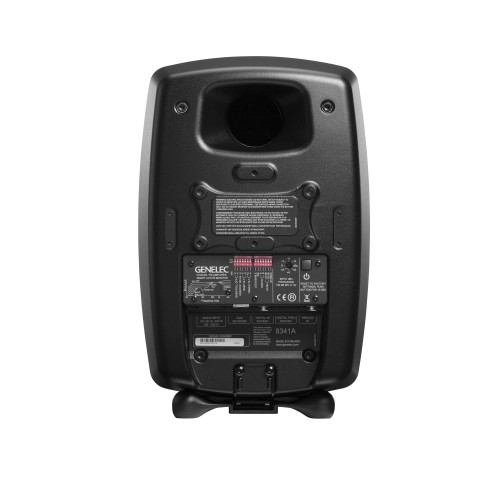

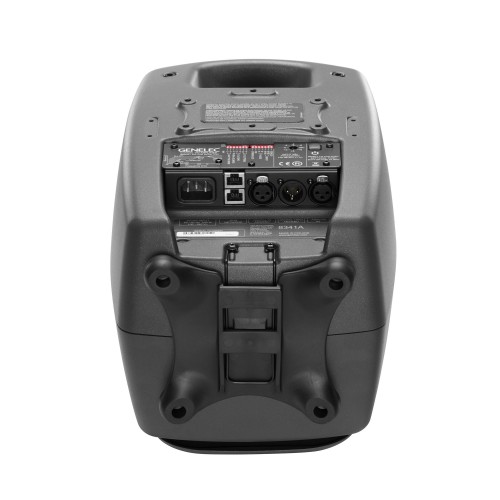

• Input Types:1 x XLR (analog in), 1 x XLR (AES/EBU)
• Output Types:1 x XLR (AES/EBU)
• Other I/O:2 x RJ45 (GLM network)
• Features:DIP switches (standalone EQ set up)
• Enclosure Type:Ported
• Height:13.8", 14.5" (with stand)
• Width:9.37"
• Depth:9.5"
• Weight:22 lbs.
• Manufacturer Part Number:8341AP
