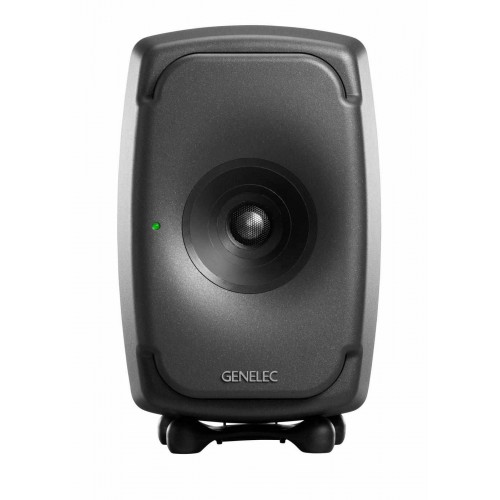

Genelec 8331A
Point-source Monitoring for Smaller Control Rooms
For extraordinary imaging, extended frequency response, and fatigue-free listening at near- to midfield distances, you can't beat point-source monitoring. Genelec has point source nailed with their 8331 SAM. Part of Genelec's "The Ones" series, this revolutionary 3-way studio monitor combines Genelec's Acoustically Concealed Woofer (ACW) technology with other innovative technologies to deliver an impressively linear payload over a remarkably wide bandwidth, resulting in phenomenal imaging and clarity. At Sweetwater, we're impressed by Genelec's Smart Active Monitor (SAM) technology, which optimizes level, timing, and equalization of room response anomalies. The result is an amazingly tight, accurate sound with enormous dynamic range and unprecedented frequency response, regardless of where you choose to work. On top of that, these monitors perform optimally in both horizontal and vertical positions.
Tech Specs
| Powered | Yes |
|---|---|
| Power Configuration | Tri-amped |
| LF Driver Size | 2 x (5.12" x 3.62") concealed woofers |
| MF Driver Size | 1 x 3.5" |
| MF Driver Type | Diffraction Coaxial Driver |
| HF Driver Size | 1 x 0.75" Coaxial tweeter |
| HF Driver Type | Diffraction Coaxial Driver |
| LF Driver Power Amp | 72W |
| MF Driver Power Amp | 36W |
| HF Driver Power Amp | 36W |
| Total Power | 144W |
| Frequency Response | 58Hz-20kHz (±1.5 dB) |
| Maximum Peak SPL | 104 dB SPL @ 1m |
| Features | DIP switches (standalone EQ set up) |
| Input Types | 1 x XLR (analog, AES/EBU) |
| Output Types | 1 x XLR (AES/EBU) |
| Other I/O | 2 x RJ45 (GLM network) |
| Enclosure Type | Ported |
| Height | 11.25", 12" (with stand) |
| Width | 7.5" |
| Depth | 8.37" |
| Weight | 15 lbs. |
