Solid State Logic SSL UF1

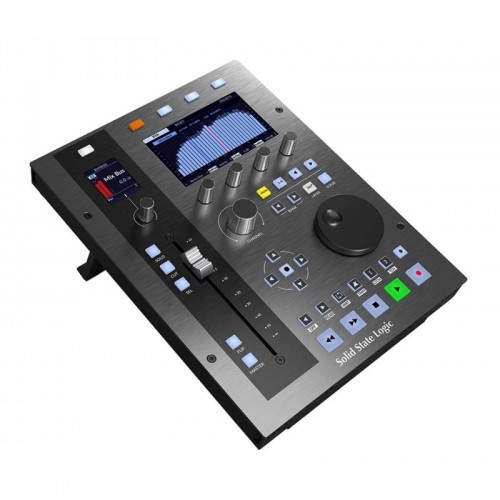

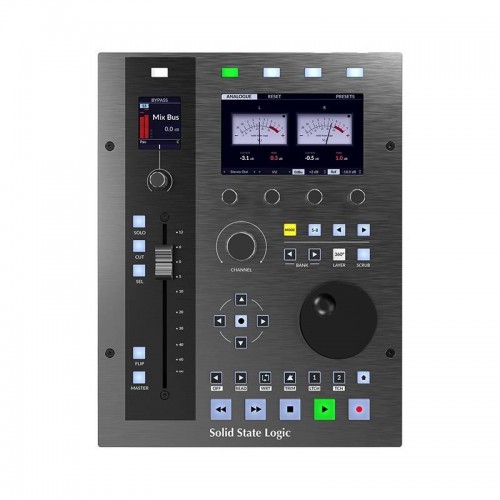

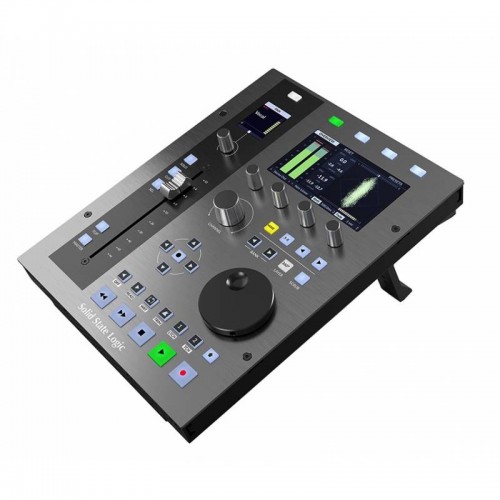

Solid State Logic UF1 is the perfect hardware expansion for the UC1 plug-in controller, providing a feature set that expands UC1's capabilities. When the UF1 is set to control the SSL Plug-in Mixer, the centre of the large display shows you the EQ curve of each 360-enabled channel strip. In addition, UF1 provides a physical fader and easy access to parameters that live in the UC1 Extended Functions menu such as Width, Pan, Mic Gain and Comp Mix.
Specification
- 1 x 100 mm high quality, touch-sensitive motorised faders.
- 5 x rotary endless rotary encoders with push.
- Large 4.3” IPS LCD TFT high-resolution colour display.
- Additional 1.77” LCD TFT high-resolution colour display.
- Backlit RGB soft-feel rubber buttons.
- All metal enclosure, finished with a brushed anodised top plate.

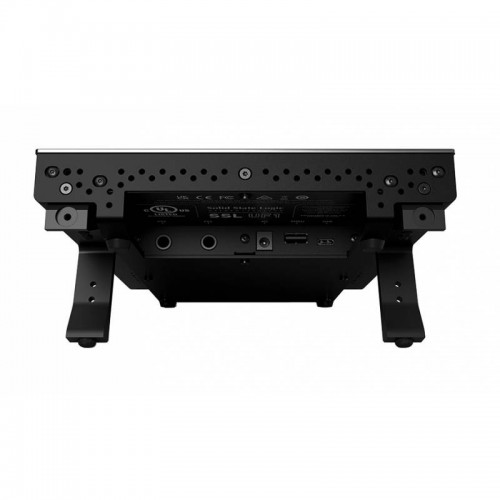

- Included stands allow for 6 different elevation angles. Or use without stands.
- Connects to your computer via hi-speed USB – no need to deal with computer networks or ethernet cables.
- Width 205 mm / 8.07”, Height 265.9 mm / 10.46”, Depth 62.5 mm / 2.46”
System Requirements
SSL 360° software must be installed on your Mac or Windows computer in order to use SSL UF1. SSL 360° is available for FREE from the 'Documents & Downloads' tab on this page.
SSL 360° software requires the following:
- Mac 10.5 (Catalina), 11 Big Sur (Apple Silicon & Intel), 12 Monterey (Apple Silicon & Intel), 13 Ventura (Apple Silicon & Intel).
- Windows 10, Windows 11 (including 12th Gen Intel Machines)
- Intel 3rd Gen Core i5 (or comparable AMD processor) CPU running at 2.4GHz or higher
- 8GB RAM or more is recommended
- Internet-connection for software updates from SSL 360° application
Supported DAWs
The following DAWs are officially supported by UF1 and have dedicated profiles in SSL 360°. We only officially test with the most recent versions of each DAW software. In most cases, previous versions will also work fine.
- Pro Tools®
- Logic Pro®
- Cubase™ / Nuendo™
- Ableton® Live™
- Studio One®
- LUNA™
- Pyramix™
