Pressure Gradient Microphone
After the huge success of Vintage V11 microphone, JZ Microphones decide to expand product range with a budget series named simply - J and it's first product being J1. Although targeted to more budget oriented bedroom studios, J1 is still completely handcrafted in Latvia, EU under the supervision of Juris Zarins.

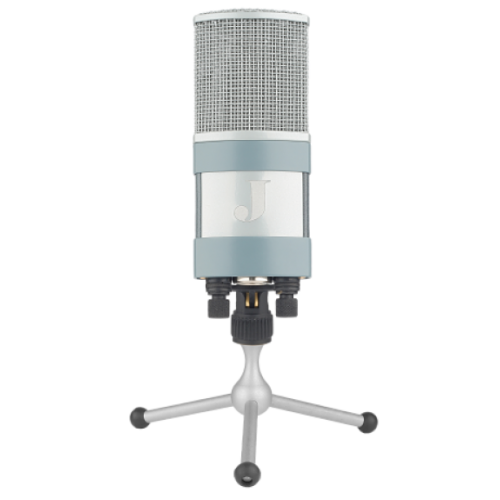

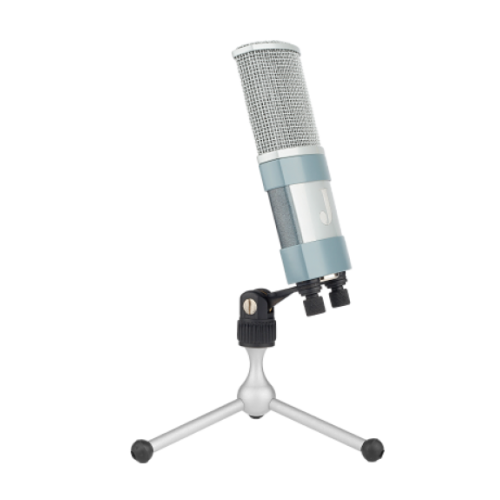

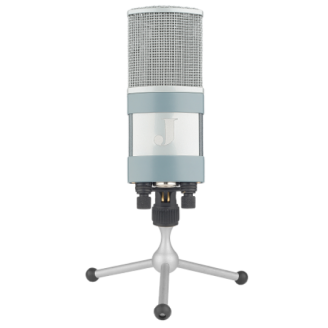

JZ J1 will be housed in a flat shaped and grey coloured body with a shock mount already included in the set. Wire mesh grill will be covering the capsule with active diaphragm of 21 mm. This brand new capsule is produces using JZ Microphones patented Golden Drop technology.
Microphone is announced to be shipping from July 1, 2013.
Specification
Transducer Type
True electrostatic
Operating Principal
Pressure gradient
Diaphragms Active Diameter
21 mm

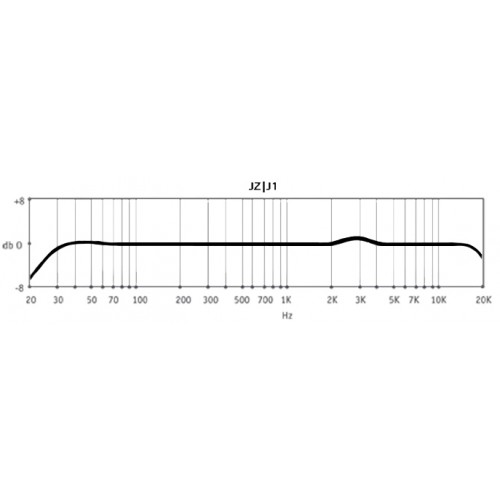

Frequency Range
20 Hz to 20 kHz
Polar Pattern
Unidirectional - Cardioid
Output Impedance
50 ohms
Rated Load Impedance
1000 ohms
Suggested Load Impedance
>250 ohms
Equivalent Noise Level
6 dB
Maximum SPL
134 dB
Dynamic Range of the microphone preamplifier
130 dB
Phantom Powering Voltage
+48 V
Output Connector
3-pin XLR male, gold plated contacts
