MGB

Coaxial MADI Interface

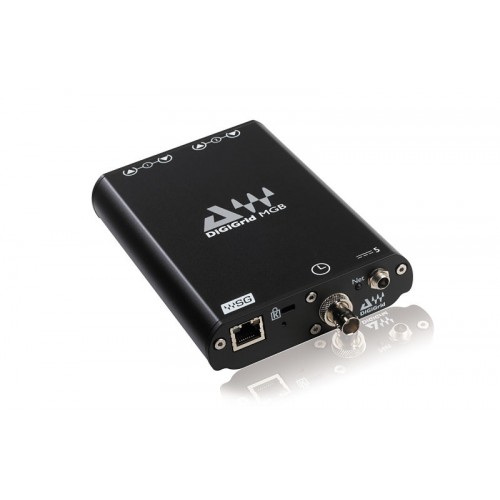

Compact and portable, the DiGiGrid MGB interface lets you plug any coaxial MADI-enabled device into the power of the Waves SoundGrid networking and processing platform. Record, process and playback up to 128 audio channels, using literally hundred of Waves and third-party plugins, with super-low latency, clocking in at only 0.8 millisecond! You can even record to two computers simultaneously: One for virtual soundcheck, the other for backup. So if you’re on the tour bus, in your hotel room, at the airport - wherever - you can quickly and conveniently setup your next show, using only your laptop.

With a DiGiGrid MBO MADI-to-SoundGrid interface, real-time low-latency networking and processing is only an Ethernet cable away.

Features

• Coaxial (BNC) MADI-to-SoundGrid interface
• Up to 128 channels
• Record to two computers simultaneously
• Super low-latency: 0.8 milliseconds
• Connect with one Ethernet cable (Cat 5e/ Cat 6)
• Run hundreds of real-time plugins (SoundGrid DSP Server and 1GB switch sold separately)
• ASIO & Core Audio compliant

Specifications

• MADI Coaxial I/O (BNC)
• Supported sample rates: 44.1, 48, 88.2, 96 kHz
• 112/128 channel I/O @ 48 kHz
• 56/64 channel I/O @ 96 kHz
• 56 and 64 channel mode support
• Supports Synchronisation via Word Clock input, MADI (port 1or 2), SoundGrid (Sync over Ethernet), Internet
• 1 SoundGrid RJ45 Ethernet port
• Reset switch
• DiGiCo Stage Rack channel 57 support
