PreSonus Eris E8 (Per Pair)

The Eris E8

Two-Way Active 8" Studio Monitor from PreSonus delivers an accurate response with tight bass and a clear upper end. The Kevlar low frequency transducers, low-mass silk-dome tweeters and responsive Class AB amplification combine with acoustic-adjustment controls to create a versatile and adaptable listening system.

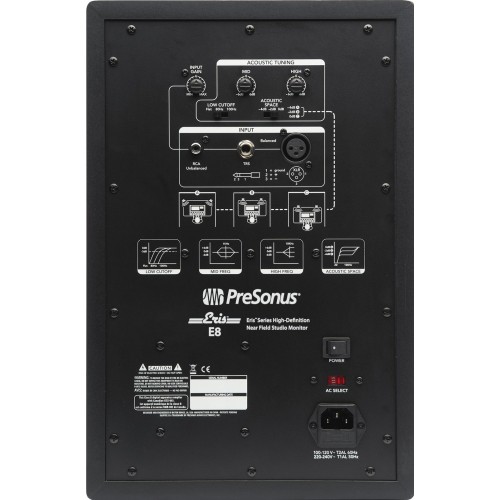

Acoustic Tuning Control

The Eris provides three EQ controls in its Acoustic Tuning section: High, Mid, and Low Cutoff. These controls enable you to fine-tune the monitors to your space. The Low control also is useful when using the E8 with a subwoofer.

The High control is a shelving filter that boosts or cuts all frequencies above 4.5kHz by as much as 6dB. The Mid control is a mid-frequency peak filter that boosts or cuts frequencies centered at 1kHz and extending about one octave above and below that frequency. The Low Cutoff control rolls off frequencies below either 80 or 100Hz at a slope of 12dB/octave. This control is especially useful if you also have a connected subwoofer.

Acoustic Space Control

A three-position Acoustic Space switch controls a second-order, low shelving filter that cuts frequencies below 800 Hz by either 2 or 4dB to compensate for the boundary bass boost that occurs in close proximity to walls or corners.

Thorough Protection Circuitry

RF shielding protects against radio frequencies that could be introduced to the signal and become audible. Eris monitors also provide overheat protection, current-output limiting and subsonic protection. "Soft startup" amplifiers prevent damaging pops from sounding through the speakers when you power them up.

SPECIFICATION

Input

1 x XLR balanced

1 x 1/4" TRS balanced

1 x RCA unbalanced

Frequency Respond

53 Hz to 22 kHz

Crossover Frequency

2.2 kHz

LF Amplifier

75W

HF Amplifier

65W

Maximum SPL

105 dB @ 1 meter

Low Frequency Driver

8" (10.32 cm)

High Frequency Driver

1.25" (3.18 cm) silk dome

Input Impedance

10kΩ

Volume Control

A-Type taper

Equalization

HF Control : -6, 0, +6 dB; continuously variable

MF Control : -6, 0, +6 dB; continuously variable

Low Cut Filter : Flat, 80 Hz, 100 Hz; switchable

Acoustic Space Control : Flat, -2 dB, -4 dB; switchable

Protection

RF interference

Output-current limiting

Over-temperature

Turn-on/off transient

Subsonic filter

External manis fuse

Enclosure Material

Vinyl-laminated MDF

Power Requirements

100 to 120V or 220 to 240V, 50/60 Hz

Dimensions (W x D x H)

9.84 x 11.77 x 15.12" (250 x 299 x 384 mm)

Weight

22.2 lb (10.07 kg)
