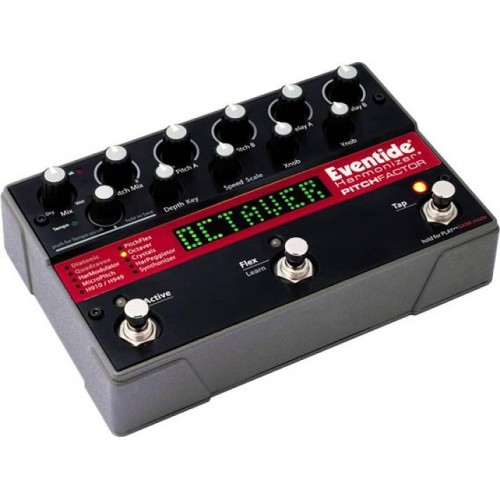

Harmonizer Guitar Multi Effects Pedal
Studio Quality Effects at Your Feet
Top recording studios worldwide use Eventide effects on hit after hit. PitchFactor includes Eventide's best pitch-changing effects from the past 39 years without compromising quality OR flexibility.
Flexibility Built-In
Plug-and-play expression pedal control of wet/dry mix or any combination of parameters. Control program changes and vary parameters continuously via MIDI. Supports instrument or line level inputs and outputs. Plays well with others; adapts seamlessly with a wide variety of amps and other foot pedals.
Obsolescence is so 20th Century
Easy to upgrade; download new software from the Internet and install via USB.
Features
-
10 of Eventide’s signature stereo or mono pitch+delay effects:
-
Diatonic
-
PitchFlex™
-
Quadravox™
-
Octaver™
-
HarModulator™
-
Crystals™
-
MicroPitch
-
HarPeggiator™
-
H910 / H949
-
Synthonizer™
-
Up to 4 voices of diatonic pitch shifting and up to 1.5 seconds of stereo delay
-
Studio quality sound
-
Guitar or bass compatible
-
Built-in Tuner
-
Software upgradeable via USB 2.0
-
MIDI control via USB or MIDI in, out/thru
-
Instant program change
-
Real-time control with 10 knobs, MIDI, or expression pedal
-
Tap tempo and MIDI clock sync
-
100 factory presets, unlimited through MIDI
-
True analog bypass
-
Rugged cast metal construction
-
Reliable metal footswitches for instant preset access
-
Mono or stereo operation
-
Guitar or line level inputs and outputs
Specifications
Input Impedance
500K ohms
Output Impedance
470 ohms
Recommended Load Impedance
10K ohms or greater
Connectors
Input 1 (mono) - 1/4 inch mono phone jack
Input 2 - 1/4 inch mono phone jack
Output 1 (mono) - 1/4 inch mono phone jack
Output 2 - 1/4 inch mono phone jack
Expression Pedal - 1/4 inch mono phone jack
Aux Switch - 1/4 inch mono phone jack
USB - Type B Socket. Use 2.0 cables only.
MIDI In - Five pin DIN (female)
MIDI Out/ Thru - Five pin DIN (female)
AC Adapter Jack - Power Supply included
Power Adapter
9 VDC, 1200 mA, Tip hot ( + )
Dimensions
4.8" x 7.5" x 2.12" (122 x 190 x 54 mm)
